Understanding Horizontal Movement in Rope Rescue Systems
Horizontal rope rescue systems are essential tools in a rescuer’s toolbox—designed not just to span gaps, but to safely and efficiently move a suspended load from one location to another. While many think of rope rescue as a vertical problem, horizontal operations come with their own unique challenges, demands, and opportunities for excellence.
A Foundation in Movement
Horizontal systems don’t require flat terrain or matching elevation points. In fact, more often than not, rescue teams must deal with uneven edges, unpredictable drop points, and awkward spans—whether over rivers, gorges, urban voids, or industrial machinery.
NFPA 1006 and NFPA 2500 standards both emphasize the importance of being competent in moving suspended loads along a horizontal path. And while they don’t specify how that movement must be accomplished, it’s up to the technician to know when and how to use the right system to match the terrain and the scenario.
This blog lays the groundwork for understanding these systems, their configurations, and their applications. Some of these techniques are addressed in deeper detail throughout our other courses—particularly twin tension offsets and highlines—but this serves as a map for the landscape of horizontal rigging.
Types of Horizontal Systems
There are two core categories for moving loads horizontally:

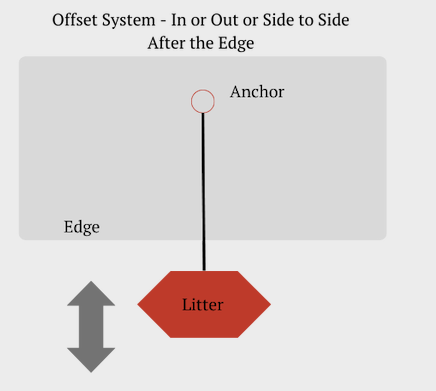

Offsets
Used to move the load along a horizontal or diagonal path from a single anchor point. Common examples include:
- Tagline Systems: Offers lateral stability and minor course correction for a lowering or raising load.
- Guiding Line Systems: Used to control descent paths when an obstacle or hazard must be bypassed.
- Tracking Line Systems: A semi-static horizontal rope where the load can ride or be guided across.
- Skate Block or Track Line Systems: Allows a litter or rescue package to traverse a span efficiently with minimal hardware and force.
- Deflection Lines: Redirect loads across gaps using angled lines between anchors to shift the load path.
Highlines
These systems function as tensioned horizontal rigging bridges—providing a true suspended transport option.
- Two-Rope Highlines: Provide redundancy and control, allowing for safe lateral and vertical movement.
- Dynamic Directionals: Moving high points or floating pulleys that shift the control direction throughout the evolution.
Key Principles Behind the Systems

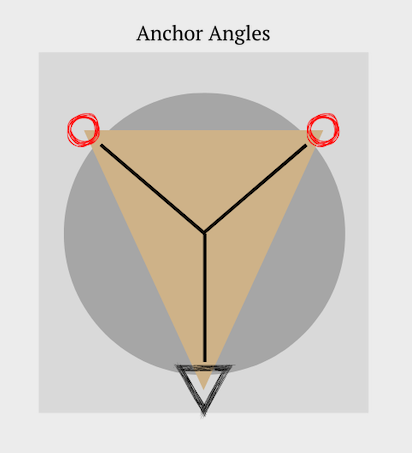

- Vector Forces: Every element in a horizontal rigging system is subjected to vector forces—anchors, directional pulleys, and the rope itself. Misjudging angle or tension introduces risk.

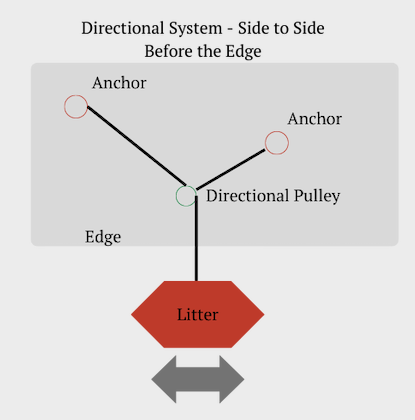

- Elevation & Angle: Effective directional systems rely on managing anchor height, placement, and directional pulley angles. Improper configuration can cause excessive rope stretch or anchor strain.
- Stability Under Load: Whether using a tracking line or offset, your system must not only support the load but also account for lateral movement, wind, dynamic entry points, and load sway.
- Redundancy and Adjustability: Rescue systems must accommodate unexpected load shifts. Systems like highlines and floating A-frames help distribute and balance shifting weight.
When and Why to Use Horizontal Systems
- Navigating terrain where vertical movement alone is not possible (e.g., riverbeds, rooftops, cliff faces).
- Bypassing dangerous obstacles such as swift water, unstable debris fields, or industrial voids.
- Accessing confined or remote locations that require a stable, controlled path for patient packaging and transport.
Horizontal systems demand more than just technical knowledge—they require a mastery of judgment, a strong grasp of mechanical advantage, and an eye for terrain.
Final Word
Horizontal rescue systems are as complex as they are powerful. From offsets to highlines, each technique offers a tool to move patients and personnel with purpose, safety, and control. But they require more than just gear—they demand understanding, precision, and intention.
We’ll explore each of these systems in-depth throughout the course. For now, remember: Horizontal rigging isn’t a workaround—it’s a cornerstone of modern rope rescue.
