Block and Tackle System for Vertical Rescue and Access

In vertical rescue and rope access, fast reversibility, mechanical advantage, and clean rope management can make or break a successful operation. Petzl offers three leading systems that address these needs from different angles: the TWIN RELEASE, the MAESTRO haul/lower system, and the I’D EVAC + JAG SYSTEM.  The correct block and tackle system for vertical rescue and access is choice – and one that can easily be made.

Although each system has unique features, they all serve a common purpose—controlled movement of a load in vertical environments—whether that’s a patient, worker, or gear.

1. TWIN RELEASE

Pre-Rigged Precision for Fast Access

The TWIN RELEASE system is a compact, 4:1 block and tackle setup specifically designed for vertical entry and extraction. It pairs a TWIN RELEASE pulley at the top with a SPIN L2 pulley at the bottom, creating a mechanically efficient and low-complexity system.

Key Advantages:

• Rapid Mode Transitions
  Operators can switch between hauling and lowering instantly—no need to change rigging or adjust components.

• Built-in Friction Control
  The integrated cleat allows users to modulate tension, even with heavier loads.

• Flexible Mounting Options
  The system can be anchored or clipped directly to the load, depending on operational needs.

• Remote Operation Capability
  A cordellette can be used to control the system from a distance, increasing flexibility during confined space rescues.

When to Use It:
Choose the TWIN RELEASE when your priority is speed, compact rigging, and minimal operator effort, especially in preplanned vertical rescues.

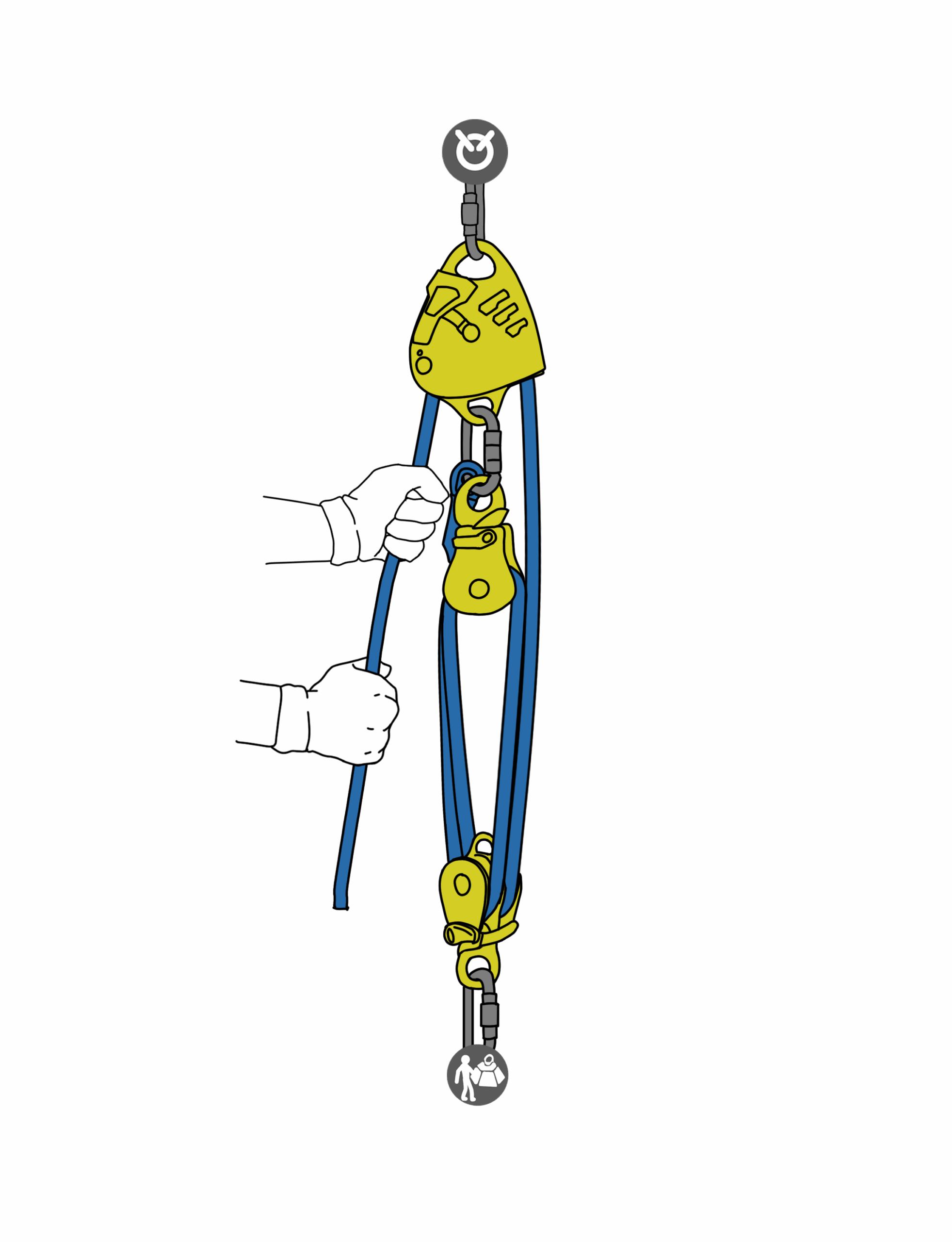

2. MAESTRO Haul/Lower System

Modular Control for Variable Terrain

The MAESTRO haul/lower system offers more adaptability than the fixed TWIN RELEASE. By combining a Petzl MAESTRO, a SPIN L1 or ROLLCLIP pulley (top), and a SPIN L2 (bottom), users gain adjustable mechanical advantage and enhanced friction control.

Why It Stands Out:

• Variable Mechanical Advantage
  This system supports 2:1, 3:1, or 4:1 configurations, making it easier to scale based on team size, load weight, or access constraints.

• Integrated Friction Modulation
  The MAESTRO doesn’t just stop and start—it gives fine control over rope tension and speed, especially during long or delicate descents.

• Dual-Functionality
  It lowers and raises loads without interruption. Unlike many traditional MA systems, there’s no need to reset or switch components mid-operation.

• Remote Operability
  Just like the TWIN RELEASE, the system can be operated remotely, offering versatility in edge or elevated anchor setups.

When to Choose It:
Use the MAESTRO system when you require field-adjustable mechanical advantage, or when friction control during descent is a critical factor.

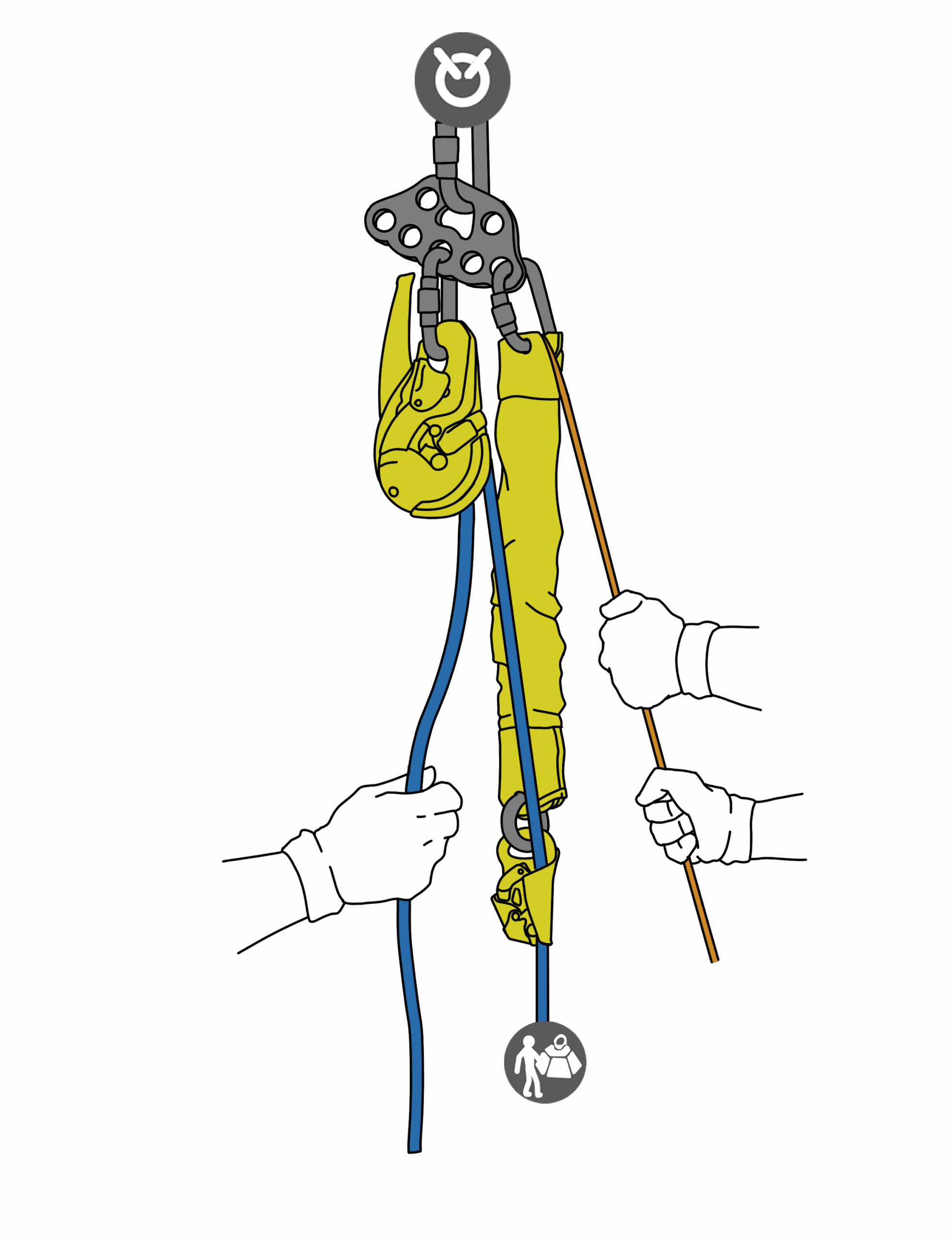

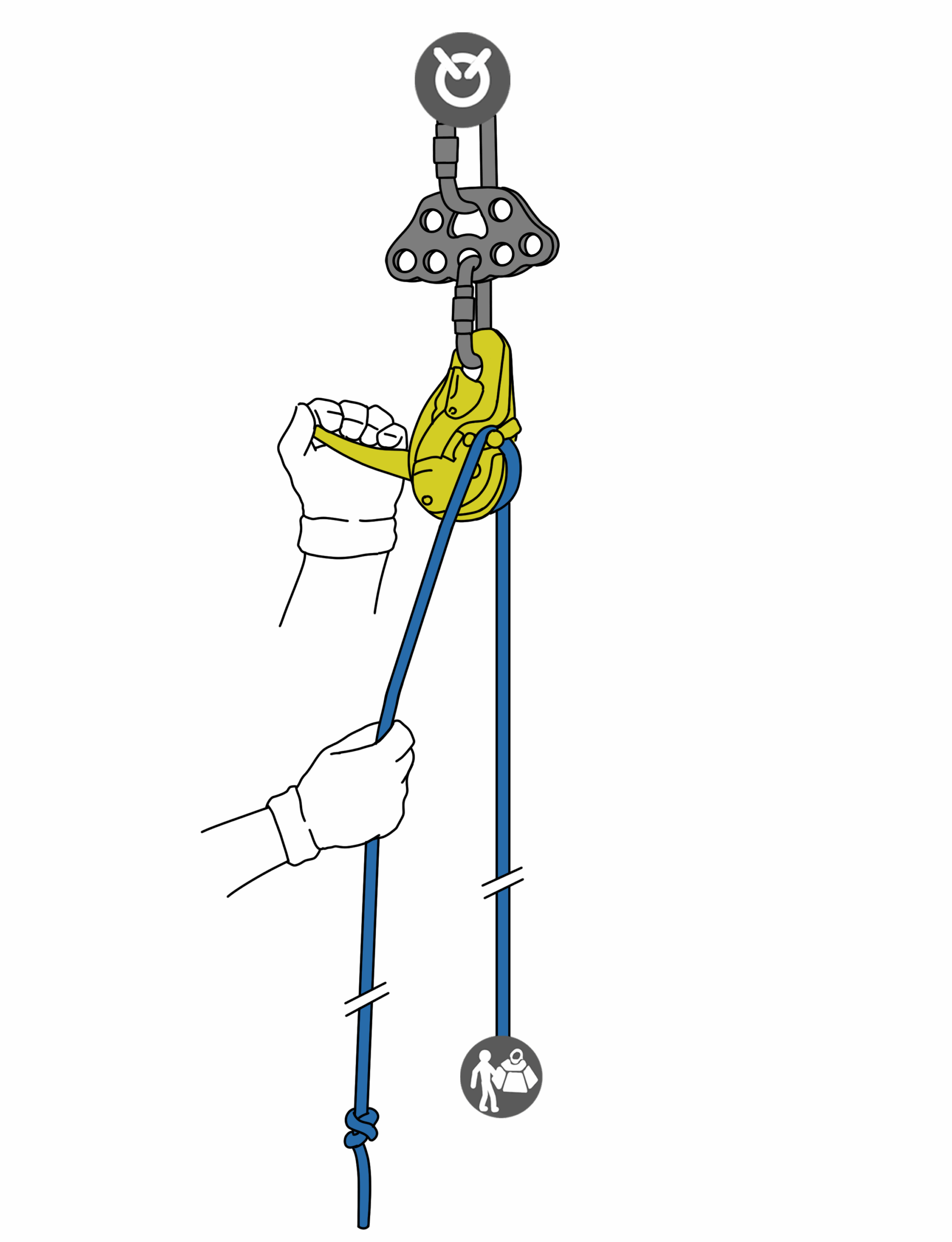

3. I’D EVAC + JAG SYSTEM

Detachable Simplicity for Rope-Conserving Operations

Unlike the two systems above, the I’D EVAC + JAG SYSTEM provides a modular lowering solution with a detachable 4:1 hauling kit. It pairs an I’D EVAC for descent, a JAG SYSTEM for raising, and either a BASIC or RESCUCENDER rope clamp for progress capture.

Distinct Benefits:

• Rope Efficiency
  Since the JAG can be removed after the raise, you only need a minimal amount of rope for the full cycle. This matters in long drops or when rope supply is limited.

• Clean Descent Path
  After the haul, the system transitions into a low-friction descent path with no pulley or device clutter in the line—ideal for tight spaces.

• Reduced Entanglement Risk
  Without a full block-and-tackle assembly left in place, there’s less rope-on-rope or pulley-on-line contact, which reduces snags.

Best Use Cases:
This is the go-to system for deep lowers, vault access, or when your team wants a quick raise followed by a clean, tangle-free descent.

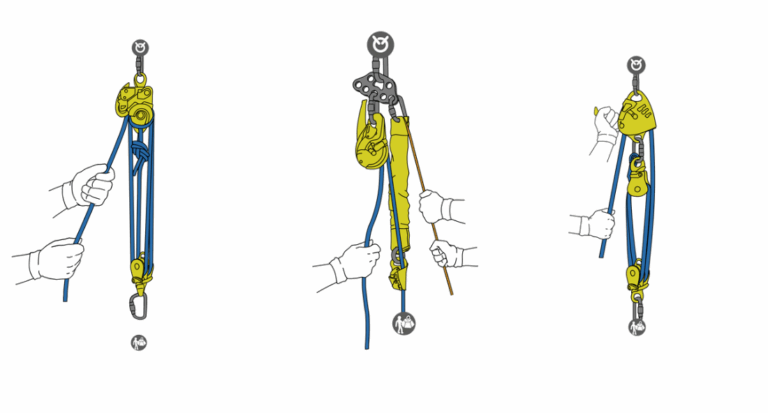

System Comparison at a Glance

Conclusion: Match the System to the Scene

All three systems are designed to improve safety, speed, and precision in vertical rescue. However, context should guide your choice:

• Use the TWIN RELEASE when you need speed and simplicity in a confined environment.

• Deploy the MAESTRO system when adaptability and control are the top priorities.

• Select the I’D EVAC + JAG when rope efficiency and a clean descent path are essential.

By understanding the structure and strengths of each system, rescue teams and access professionals can make better-informed decisions—and execute with greater confidence.
