Pulley systems have been used for centuries to move loads with greater control and less effort. The same basic principles once used in maritime rigging still apply in modern rope rescue, industrial access, and technical hauling systems. While pulley arrangements can appear complicated, five simple rules make it easier to identify the theoretical mechanical advantage and understand how the system will behave.

Mechanical advantage describes the relationship between the force applied by the haul team and the force theoretically delivered to the load. A 3:1 system means that, under ideal friction-free conditions, one unit of input force can produce three units of force at the load. That advantage comes with a tradeoff: the haul team must pull approximately three feet of rope to move the load one foot.

Actual system performance will always be lower than the theoretical ratio because friction develops in pulleys, connectors, rope bends, edges, and progress-capture devices. Even so, understanding the theoretical system provides the foundation for evaluating its real-world efficiency.

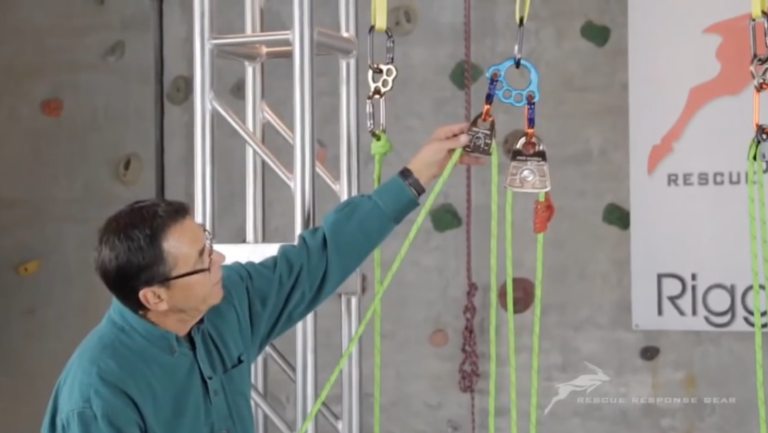

Rule 1: A Rope Tied at the Anchor Produces an Even Mechanical Advantage

In a simple pulley system, the location of the rope termination helps identify whether the mechanical advantage will be even or odd.

When the rope terminates at the anchor, the theoretical mechanical advantage will be an even number:

• 2:1
• 4:1
• 6:1
• 8:1

A basic 2:1 system demonstrates this principle. The rope begins at the anchor, travels through a pulley attached to the load, and returns to the haul team. Two rope legs support the load, creating a theoretical 2:1 mechanical advantage.

Rule 2: A Rope Tied at the Load Produces an Odd Mechanical Advantage

When the rope terminates at the load, the theoretical mechanical advantage will be an odd number:

• 3:1
• 5:1
• 7:1

A traditional Z-rig provides a common example. The rope terminates at the load, and three working rope legs contribute to moving it. This produces a theoretical 3:1 mechanical advantage.

The termination point offers a quick way to determine whether a simple system should be classified as even or odd before counting pulleys or rope legs.

Rule 3: The Final Pulley at the Anchor Is a Change of Direction

The last pulley at the anchor often redirects the haul rope toward the team. This pulley improves the hauling position, but it does not add mechanical advantage.

The change-of-direction pulley simply changes where the haul team stands and the direction in which they pull.

Another way to understand this is to look at the rope legs. Mechanical advantage comes from rope legs that act between the anchor system and the moving load. A rope leg running from the anchor to the haul team does not support or lift the load.

In this context, the haul team becomes part of the stationary side of the system. The final pulley adds convenience, not additional lifting power.

Rule 4: Count the Pulleys and Add One

In a simple mechanical advantage system, count the working pulleys and add one to determine the theoretical ratio.

For example, a Z-rig contains two working pulleys:

Two pulleys + one = 3:1

The same system can also be evaluated by counting the rope legs acting between the anchor and the load. If three rope legs contribute to moving the load, the system provides a theoretical 3:1 mechanical advantage.

This second method is often the more dependable way to analyze an unfamiliar system. Identify the moving load, then count the tensioned rope legs that directly support or pull it.

Do not include a rope leg that runs only from the anchor to the haul team through a change-of-direction pulley.

Rule 5: One Simple System Pulling Another Creates a Compound System

A compound mechanical advantage system uses one simple pulley system to pull on another. To determine the total theoretical advantage, multiply the ratios.

For example:

2:1 × 5:1 = 10:1

The 5:1 system can be identified using the earlier rules. Because the rope terminates at the load, the ratio must be odd. Four working pulleys plus one indicate a 5:1 system. The same result appears when counting the five rope legs acting between the anchor and the load.

Adding a 2:1 system to pull the haul strand of that 5:1 creates a theoretical compound 10:1.

This may provide greater pulling power, but it also requires more rope travel, more equipment, and more resets.

Mechanical Advantage Is a Tradeoff

Mechanical advantage does not create free energy. It exchanges distance for force.

In a theoretical 10:1 system, the haul team must pull approximately ten feet of rope to move the load one foot. The system may require considerably less input force, but it also introduces longer haul cycles, additional resets, more hardware, and greater friction.

As complexity increases, efficiency often decreases. A larger theoretical ratio does not automatically produce the best operational system.

The team must consider:

• Available haul distance
• Required load travel
• Number of personnel
• Reset frequency
• Pulley and device friction
• Rope management
• Available equipment
• Transition requirements

A smaller, more efficient system may outperform a larger system burdened by friction and repeated resets.

Theoretical Versus Actual Mechanical Advantage

The five rules identify theoretical mechanical advantage. They assume ideal conditions in which pulleys are frictionless, ropes do not deform, and no energy is lost through devices or contact surfaces.

Actual mechanical advantage reflects what the system delivers in the field.

Every pulley introduces some friction. Rope bends, progress-capture devices, carabiners, edges, and poor alignment reduce efficiency further. A theoretical 5:1 system may deliver substantially less force multiplication once those losses are included.

For that reason, pulley-system analysis should occur in two stages:

First, determine the theoretical mechanical advantage from the rigging geometry.

Then evaluate the actual system, including friction, rope travel, reset distance, alignment, and operational complexity.

The Five Rules at a Glance

1. Tied at the anchor: the simple mechanical advantage is even.
2. Tied at the load: the simple mechanical advantage is odd.
3. Last pulley at the anchor: it changes direction but does not add mechanical advantage.
4. Count the working pulleys and add one: or count the rope legs acting between the anchor and the load.
5. One simple system pulling another: multiply the ratios to determine the compound mechanical advantage.

These rules provide a practical framework for reading pulley systems quickly. More importantly, they help rescuers move beyond memorizing diagrams and begin understanding how force, rope travel, and system configuration work together.
