Horizontal Movement Systems in Rope Rescue

In rope rescue, managing lateral movement is more than just technique—it’s about understanding system intent, terrain behavior, and safety margins. Three primary horizontal movement systems allow rescuers to safely transport a suspended load across gaps or uneven terrain:

• Taglines

• Guiding Lines

• Tracking Lines

Each system serves a specific purpose, and knowing when to use which can make or break a mission.

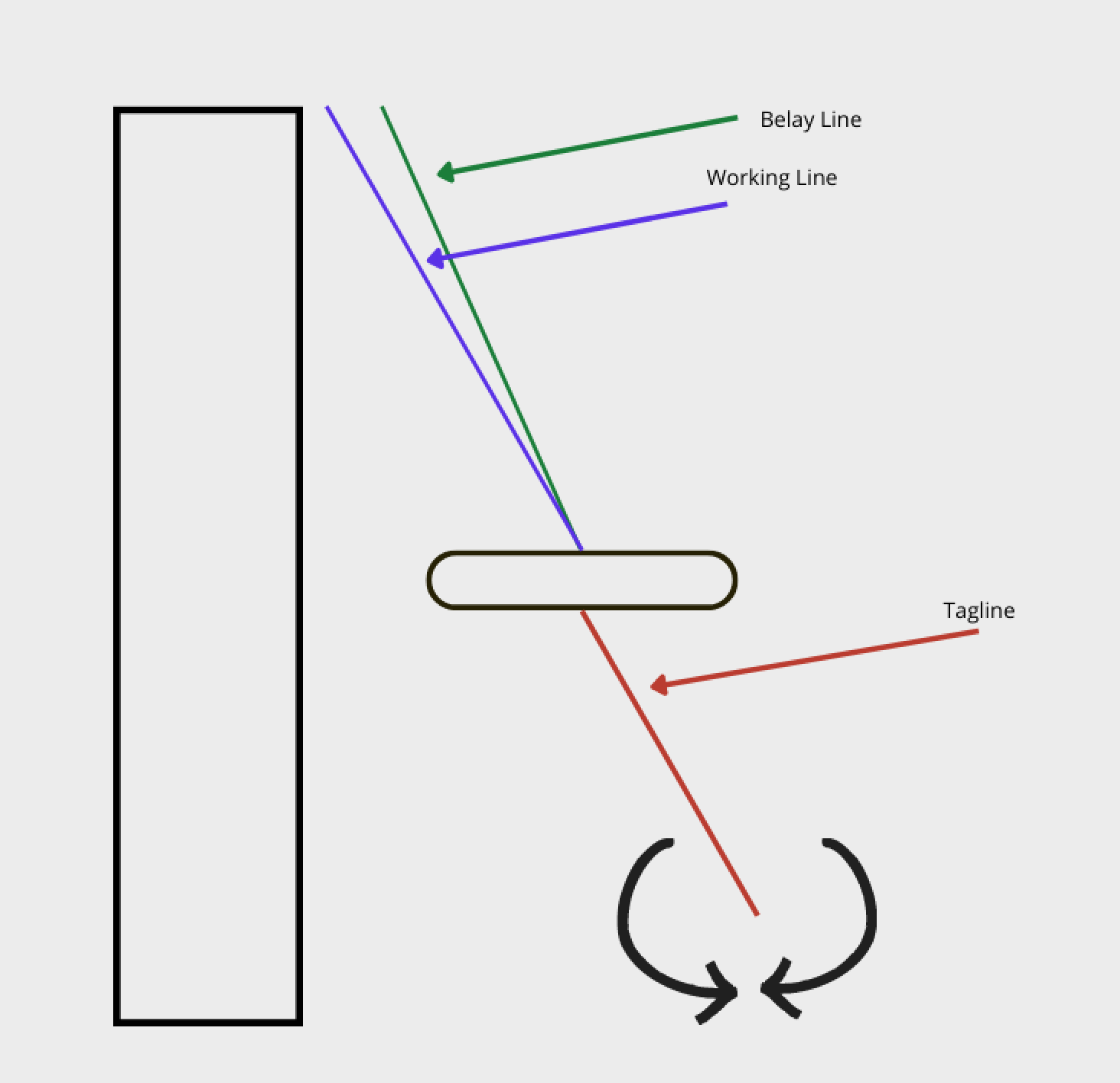

Taglines: Simple, Effective, and Essential

Taglines are the most basic form of lateral movement. Once the litter clears the edge, taglines help prevent contact with the wall or other obstructions below.

Here’s how they work:

• Typically attached to the litter rail

• Controlled by rescuers at the bottom or sides

• Used to guide, not lift

• “Minor” taglines may be just hand lines

• “Major” taglines may be anchored with pulleys for greater control

Because taglines are passive systems, they introduce no significant tension. They are ideal for stabilizing the package once it’s suspended.

When to use: Anytime the litter needs gentle positioning away from obstacles after an edge transition.

Guiding Lines: Pulley-Controlled Precision

Guiding lines build on taglines by incorporating a pulley system between the litter and the anchor. This small addition provides more control and a predictable flight path.

Key characteristics:

• Uses a floating pulley attached to the bridle

• Allows three-dimensional movement

• Requires little to no tension

• Keeps the package close to the wall, minimizing sway

Because guiding lines remain slack, they’re ideal in low-drop or short-span environments where precision is more important than lift.

Use case: Narrow or crowded landing zones where load control is vital.

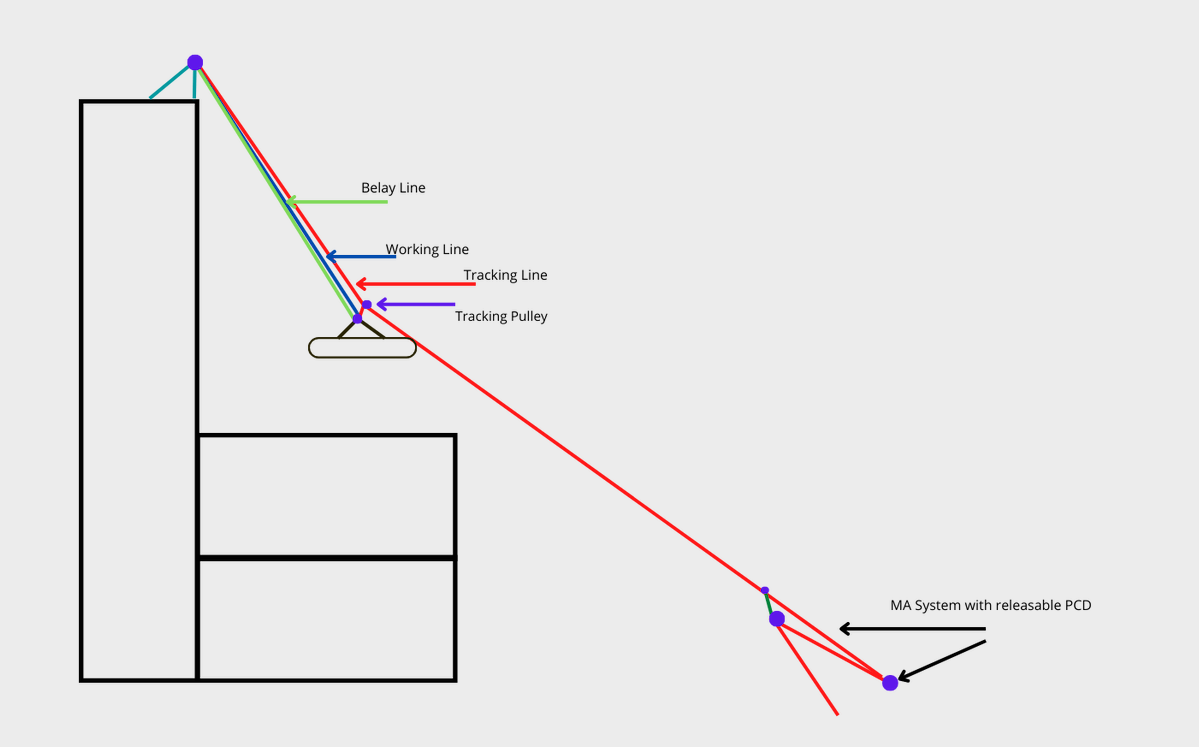

Tracking Lines: Elevated Control Across Terrain

Tracking lines offer a semi-tensioned system that lets rescuers “float” the load above terrain. A tracking pulley connects the litter to a horizontal rope, which is tensioned using a mechanical advantage system—usually from the bottom.

Benefits include:

• Moderate tension helps navigate uneven ground

• Ideal for transitions over slopes, rocks, or water

• Can be fixed at the top and tensioned from below

• Reduces drag and friction during horizontal movement

Just remember: over-tensioning a tracking line creates dangerous vector forces. Keep the package within 1 meter of the ground and avoid pushing outside the intended plane of movement.

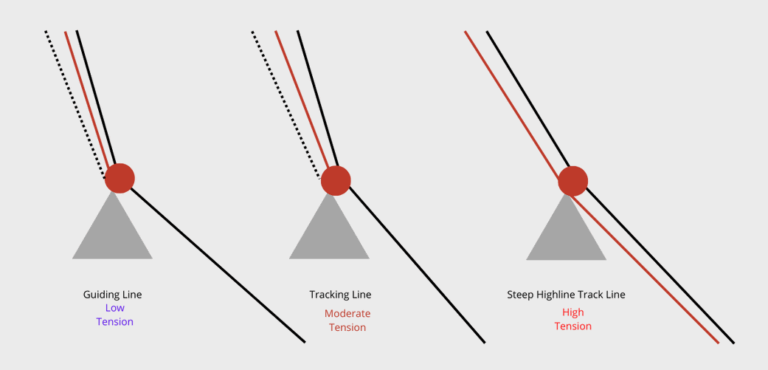

Key Differences at a Glance

The Role of Highline Track Lines

While tracking lines are part of offset systems, track lines are full highline systems—engineered with much higher tension. These lines span significant distances and may use single or bundled ropes.

• Guiding and tracking lines supplement a main/belay setup

• Track lines are the mainline, requiring load-sharing anchors and calculated rigging

We’ll cover track lines in depth later in the course.

Takeaways for Horizontal Movement Mastery

• Taglines stabilize, guiding lines steer, and tracking lines glide

• Choose the system based on terrain, hazard profile, and operational needs

• Don’t confuse guiding/tracking with highlines—they serve different purposes

• Use vector management and tension control as guiding principles

• When in doubt, rig simpler and safer

NFPA 1006 and NFPA 2500 require proficiency in suspended load management—but how you get the job done is up to your skill and system knowledge.

MORE ON HIGHLINE and OFFSETS

Peace on your Days

Lance
