Voodoo Hitch Pre-Tensioning System
The Voodoo Hitch is a quick and efficient method to apply tension in rope rescue systems. It uses wraps and friction instead of pulleys or progress-capture devices. This makes it ideal in situations where gear is limited or time is tight.
What Is a Voodoo Hitch?
The Voodoo Hitch is a manual pre-tensioning technique. It builds a simple mechanical advantage using rope and carabiners. Once tension is applied, it is secured with wraps or a mule knot. No additional hardware is needed.
It is commonly used to:
-
Tension back-ties
-
Stabilize floating anchors
-
Control directionals
-
Fine-tune rope layouts

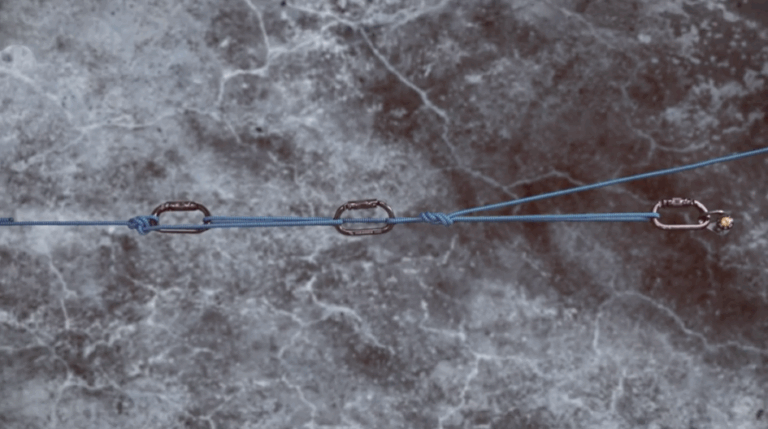

System Setup
To build a Voodoo Hitch:
-
Choose Two Anchors
Secure two strong anchor points. -
Route the Rope
Thread the rope through carabiners to create a 3:1 or 4:1 advantage. -
Pull and Tension
Haul on the tail until the system is tight. -
Secure the System
Use wraps, a bight, or a mule knot to hold the tension.
This creates a solid, no-slip tie that stays in place during operations.
When to Use It
Use the Voodoo Hitch when:
-
You need a quick pre-tensioning method
-
Pulleys or ratchets are not available
-
You want a gear-light option
-
A directional or back-tie needs minor adjustment
Benefits
-
Fast setup
-
No extra gear required
-
Easy to adjust or release
-
Works well in tight or awkward spaces
Important Notes
-
This hitch is not a rated capture system
-
Don’t use it where high shock loads are possible
-
All components must be properly aligned and load-rated
-
Always check security before applying load
Final Thought
The Voodoo Hitch is simple, fast, and effective. It doesn’t replace mechanical systems, but when used correctly, it adds speed and flexibility. Every rope technician should know how and when to use it.
Peace on your Days
Lance
