Load Sharing Anchor Using Clove Hitches and Figure Eight

Overview

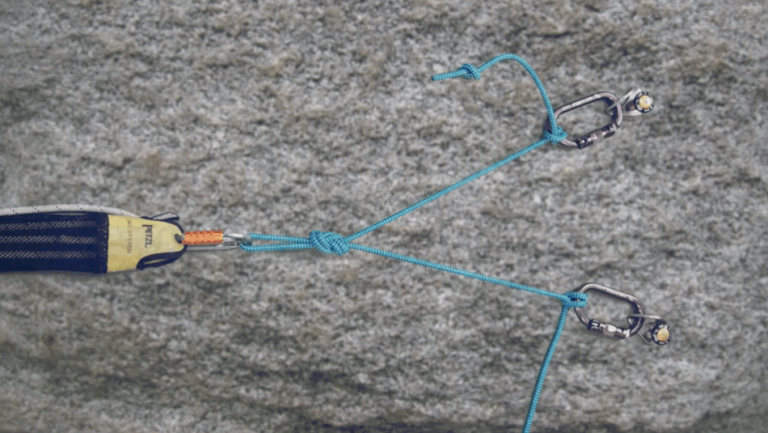

This Load Sharing Anchor setup combines two clove hitches tied directly to anchor points and a figure eight knot at the master point. The system offers fast adjustability, simple rigging, and centralized load control.

It’s an ideal solution when your anchors are spaced unevenly or need fine-tuning on the fly. The combination provides both flexibility and structure, making it perfect for teams that need rapid deployment with minimal gear.

Why This System Works

• The clove hitches offer adjustable connection points, allowing you to easily lengthen or shorten each leg without retying knots.

• The figure eight on a bight provides a secure and familiar master point for connecting the load.

• Combined, they create a stable, load-sharing setup that’s fast to build and easy to inspect.

How to Build the System

1. Tie a Clove Hitch on Each Anchor
   Begin by tying a clove hitch onto each anchor point using a section of rope. These hitches form the legs of your anchor system and allow for quick adjustment.

2. Form a Figure Eight on a Bight
   In the center of the rope between the clove hitches, tie a figure eight on a bight. This becomes your master connection point.

3. Adjust Leg Lengths
   Use the clove hitches to tension or slack each leg until the load shares evenly between the anchors. Proper leg length is key to achieving stable force distribution.

4. Clip In and Final Check
   Attach your mainline or directional system to the figure eight loop. Confirm that both clove hitches are set securely, and that the angles between anchor legs stay within safe limits (ideally under 90°).

Advantages

• Fast setup: Minimal components, no complex knots

• Easily adjustable: Clove hitches can be moved without untying

• Clean focal point: Figure eight is central, strong, and familiar

• Versatile: Works well in both rescue and rope access environments

Limitations

• Not dynamically equalizing: If the load shifts significantly, force distribution may be affected

• Requires monitoring: Clove hitches can slip if not properly dressed and tensioned

• Dependent on alignment: Best when anchor points are close to fall line

Use Cases

• Rapid team deployment during rescue operations

• Edge setups with limited time or gear

• Scenarios where anchors must be adjusted mid-operation

• Training and demonstrations of simple load-sharing techniques

Final Thought

Using clove hitches for adjustable anchor legs and a figure eight for the master point delivers a system that’s both efficient and resilient. It’s quick to build, easy to adjust, and reliable when your anchors are placed right—but time is short.

For any technician needing field-proven flexibility, this load sharing configuration deserves a spot in the primary toolkit.
