Load Sharing Anchor Using Double Loop Figure Eight and Alpine Butterfly

Overview

This tutorial demonstrates how to construct a Load Sharing Anchor (LSA) by combining a Double Loop Figure Eight and an Alpine Butterfly knot. This hybrid configuration offers flexibility in rigging, efficiently distributes the load, and provides multiple tie-in options. It is particularly effective in scenarios with uneven or offset anchor placements.

System Purpose

The hybrid LSA system is designed to:

• Distribute load between multiple anchor points.

• Accommodate uneven or offset anchors, ensuring stability.

• Provide multiple tie-in options for various rigging needs.

• Enhance redundancy in the anchor system.

This setup is especially useful in environments where anchor points are not perfectly aligned or equidistant.

Rigging Instructions

1. Tie a Double Loop Figure Eight:

   • Create two loops at one end of the rope using the figure eight on a bight method.

   • These loops will serve as primary connection points to anchor points.

2. Tie an Alpine Butterfly Knot:

   • Form a loop in the middle of the rope using the Alpine Butterfly technique.

   • This loop can serve as an additional tie-in point or connect to another anchor.

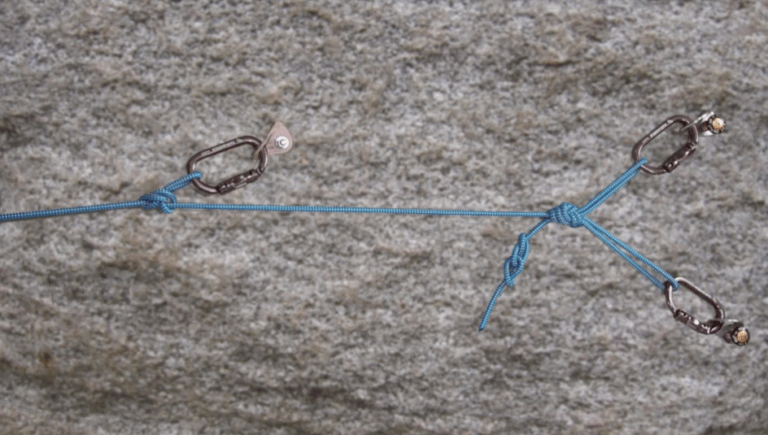

3. Connect to Anchor Points:

   • Attach each loop of the Double Loop Figure Eight to separate anchor points using locking carabiners.

   • Connect the Alpine Butterfly loop to a third anchor point or use it as a master point for the load.

4. Adjust and Tension:

   • Ensure that all connections are secure.

   • Adjust the system to distribute the load evenly across all anchor points.

5. Inspect the System:

   • Verify that knots are properly dressed and set.

   • Check that the load is shared appropriately among the anchors.

Advantages

• Flexibility: Accommodates various anchor configurations.

• Redundancy: Multiple knots provide backup in case of anchor failure.

• Load Distribution: Evenly shares the load, reducing stress on individual anchors.

• Multiple Tie-In Points: Offers options for connecting additional lines or equipment.

Considerations

• Knot Proficiency: Ensure familiarity with tying and inspecting both knots.

• Anchor Integrity: Always assess the strength and stability of anchor points.

• Load Dynamics: Be aware of how shifting loads may affect the system.

Final Thought

Combining the Double Loop Figure Eight and Alpine Butterfly knots in a Load Sharing Anchor system provides a versatile and robust solution for complex rigging scenarios. This hybrid approach enhances load distribution and offers multiple connection points, making it ideal for situations with uneven or offset anchors.
