Highline systems are among the most advanced rope rescue tools. They allow teams to move patients or gear across terrain that would otherwise be impassable — spanning rivers, cliffs, gorges, collapsed structures, or even urban voids. When done correctly, highlines are efficient and controlled. When done poorly, they can overload anchors, increase risk, and endanger rescuers and patients alike. Let’s get going with Highline Systems Anchors Safety Operations and Tensioning.

Rigging Lab Academy has covered the fundamentals of anchors, safety, operations, and tensioning, but these elements are often treated as separate checkboxes. In reality, they must function as one integrated system. Anchors must be chosen with tensioning in mind. Safety systems must align with operational flow. Tensioning must match both clearance and anchor strength.

This article expands the fundamentals into a step-by-step integrated workflow. Whether you are training or responding in the field, this guide shows how to link anchors, safety, operations, and tensioning into one unified approach.

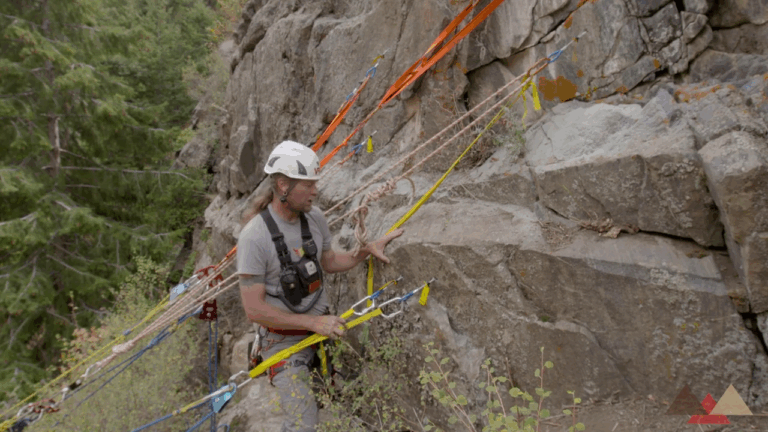

Step 1: Anchors — Building a Solid Foundation

Anchors are the backbone of any highline. Because vector forces multiply across the span, anchor systems must be chosen and built with extreme care.

Key Anchor Considerations

• Redundancy: Always use at least two anchors at each end. Build equalized systems with anchor plates, slings, or multi-point setups.

• Strength: Anticipate forces 2–3x the suspended load. A 200 lb rescue load can easily generate 600–800 lb per anchor.

• Equalization: Poor equalization can cause one anchor to absorb nearly the full force. Dynamic equalization devices or load-distributing anchors improve balance.

• Diversity: Whenever possible, use anchors of different types (tree + bolt, vehicle + structure) to reduce systemic risk.

Field Example

During a canyon rescue, rescuers built twin three-bolt anchor clusters on one rim and paired tree/rock anchors on the other. By using a rigging plate for equalization, they distributed forces across six points per side, preventing overload of any single anchor.

Bottom Line: Anchors are not just attachment points. They are engineered systems designed to absorb, distribute, and sustain multiplied forces.

Step 2: Safety — Redundancy Protects the System

Highline failures are rare, but when they happen the consequences are catastrophic. That’s why safety is not optional — it is integrated into every level of the system.

Core Safety Measures

• Belay or Twin-Tension Systems: Every highline should have a backup rope capable of supporting the load if the main fails.

• Progress Capture Devices (PCDs): Used on haul systems and track lines to prevent uncontrolled release.

• Edge and Rope Protection: Pads, rollers, or sleeves at all rope/edge interfaces.

• Secondary Attachments: Backup knots, hitches, and connectors to prevent single-point failures.

• Rigging Discipline: Clean rope paths and redundancy in critical components.

Common Mistakes

• Relying on a single anchor point for the belay.

• Placing edge protection on one rope but not the backup.

• Failing to test PCD function before loading.

Pro Tip: Safety isn’t a bolt-on. It is a layer woven into every piece of the highline.

Step 3: Operations — Managing the Load in Motion

Once the highline is built, operations are where everything comes together. This is where coordination, roles, and communication make the difference between smooth transport and chaos.

Load Carriage

• Carriage Systems: Use pulley-based carriers (e.g., REEVE or SPIN pulleys) to allow smooth travel.

• Load Attachment: Secure litters with swivels and rigging plates to prevent rope twist.

• Mid-Line Access: Systems should allow rescuers to access and stabilize the load if it swings.

Team Roles

• Haul Team: Applies tension and movement on the hauling side.

• Lowering Team: Manages descent or slack on the opposite side.

• Operations Supervisor: Oversees movement, communicates across teams, and monitors safety.

Communication Protocols

• Clear Commands: Use standard voice or whistle commands (e.g., “Haul,” “Stop,” “Lower”).

• Single Source of Command: Only one designated person gives movement commands to avoid confusion.

Scenario

In a mountain rescue, a team transported a patient across a highline span in high winds. By assigning a stabilizer rescuer clipped mid-span, they prevented uncontrolled swinging and kept the patient oriented. Smooth hand signals between the haul and lower teams ensured coordinated control.

Step 4: Tensioning — The Balance Between Clearance and Force

Tensioning is where highlines succeed or fail. Too loose, and the load drags. Too tight, and anchors risk catastrophic overload.

Tensioning Guidelines

• Moderate Tension: The goal is enough clearance, not a rigid span.

• Mechanical Advantage Systems: Use 3:1 or 5:1 hauls with PCDs for controlled tensioning.

• Load Monitoring: A dynamometer or load cell can give real-time feedback on forces.

• Release Systems: Build in a safe method for detensioning, such as a ratchet strap or controlled release MA system.

Dynamic vs Static Considerations

• Static Tension: Forces measured while system is loaded but stationary.

• Dynamic Loads: Forces spike dramatically during starts, stops, or if the load bounces mid-span.

Guideline: Clearance should come from smart rigging choices and high-directionals, not brute-force tension.

Integrated Workflow: Seven Steps to Success

1. Identify and build equalized anchor systems.

2. Install safety backups, belays, and edge protection.

3. Rig and pre-tension the track line.

4. Place the carriage and secure the load.

5. Apply controlled tension while monitoring forces.

6. Operate the system with coordinated roles and clear communication.

7. Continuously monitor anchors, ropes, and load movement throughout.

This sequence ties anchors, safety, operations, and tensioning into a single repeatable model.

Why Integration Matters

Rescue systems fail when treated as isolated tasks. Integration ensures:

• No critical step is skipped.

• Anchor design matches expected forces.

• Safety systems are in place before operations begin.

• Tensioning is balanced against anchor strength and clearance needs.

• Teams communicate clearly and operate as a unified whole.

Conclusion

Highline systems are not simply ropes stretched across space — they are engineered solutions that depend on anchors, safety, operations, and tensioning functioning as a single chain. One weak link endangers the entire mission.

By adopting an integrated workflow, rope rescue teams can build highlines that are efficient, strong, and safe. Train the sequence. Practice it repeatedly. And when the real call comes, you’ll have the confidence that your system is not just built — it’s built right.
