2×1 Equalette Load Sharing Anchor with Limiting Knots

The 2×1 equalette anchor is a refined variation of traditional cordelette systems. It’s designed to distribute load between two anchor points while incorporating limiting knots to reduce extension and manage system stability in the event of anchor failure. This setup is efficient, adaptable, and ideal for environments where anchor redundancy is critical.

What Is a 2×1 Equalette?

The term “2×1” refers to a configuration that uses two anchor legs converging into one central master point. What sets the equalette apart is its use of limiting knots—which constrain the amount of extension and shock load that can occur if one anchor point fails.

This design allows a small amount of load-sharing between the two anchors, but more importantly, it protects the system from a full shock extension.

Core Components

• Anchor Material: Cordelette, 6–7mm cord or robust sling

• Two Anchor Points: Rock features, bolts, structural elements

• Master Point Connection: Carabiner or load-rated rigging hub

• Limiting Knots: Overhand knots tied on both strands of the equalette to prevent excessive movement

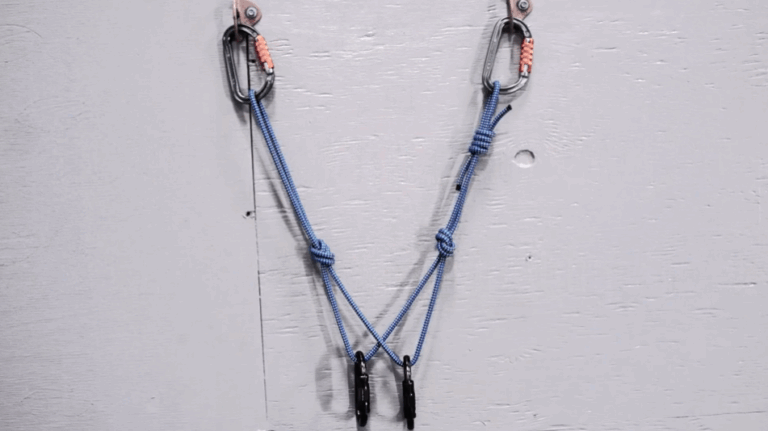

How to Build the Anchor

1. Identify Two Solid Anchor Points
   Ensure both points are independently strong and properly placed in relation to expected load direction.

2. Connect the Equalette Cord
   Clip the cordelette into both anchors to form a U-shape, with the strands running toward the center.

3. Tie Limiting Knots
   Tie an overhand knot on each leg, spaced about 4–6 inches from the anchor points. These knots control how far the master point can shift if one anchor fails.

4. Form the Master Point
   Clip the two legs together between the limiting knots to form your master point. This is where your mainline or belay will be attached.

5. Check Alignment and Slack
   Adjust positioning to equalize the load as best as possible and ensure neither leg is significantly longer or under unequal tension.

Why Use Limiting Knots?

Limiting knots are a key feature of the equalette system. Without them, the failure of one anchor would cause the master point to shift drastically, possibly introducing slack and shock load.

With limiting knots in place:

• The system remains compact

• The master point movement is restricted

• Shock force is minimized

• Stability is retained under partial failure

Use Cases

• High-angle rescue with two secure but offset anchors

• Urban or structural environments with steel anchors or bolts

• Backcountry setups where anchors are reliable but not perfectly equalized

• Ideal for both mainline and belay anchor builds

Considerations

• The 2×1 equalette is not a “perfect equalizer” — it reduces extension, but may not perfectly equalize dynamic forces

• Must be checked under pre-load conditions to verify that both legs engage as expected

• Slack between the limiting knots and anchors should be minimal but intentional

Final Thought

The 2×1 equalette with limiting knots is a compact, powerful solution for real-world rescue anchors. It adds redundancy, reduces extension, and enhances system resilience without adding significant complexity. Whether used in a mirrored system or as a standalone anchor, it reflects good rigging judgment and attention to failure consequence.

MORE ANCHORS

Peace on your Days

Lance
