Load Distributive Anchor Fixed Rope with Double Loop Figure Eight
Overview
The Load Distributive Anchor, built using a Fixed Rope with a Double Loop Figure Eight, provides a reliable, redundant way to share load across two anchor points. This setup is fast to rig, easy to inspect, and ideal in scenarios where directional force or anchor reliability needs to be balanced.
The core advantage of this anchor system is its distribution of load between two points while maintaining simplicity and structural integrity using only a single rope and a well-dressed knot.
System Purpose and Context
This method is used to:
-
Create a static, fixed anchor system from a single rope
-
Distribute force between two anchor points without relying on slings or pre-sewn cord
-
Offer equal or near-equal tension across two load paths
-
Maintain redundancy in case one anchor fails
It is especially useful when:
-
Equalization is needed without a load-sharing device
-
The anchors are relatively aligned with the load direction
-
The rigging team needs a fast, efficient setup using rope already in system
Steps to Build the System
-
Prepare the Fixed Rope
Use a section of rope that is appropriately rated and long enough to reach both anchor points with slack for knot tying. -

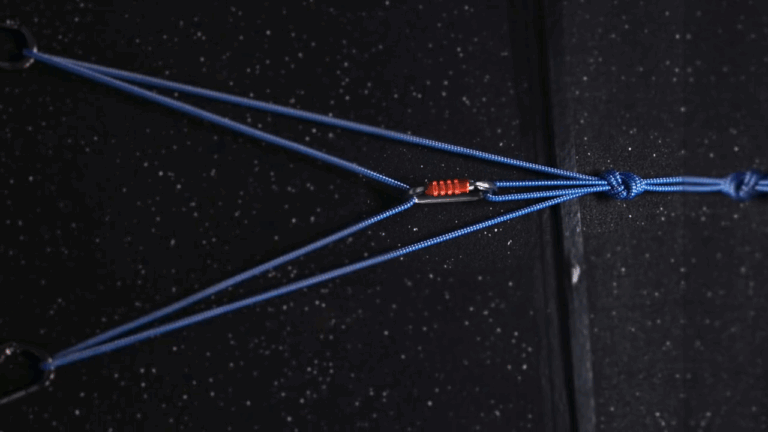

Tie the Double Loop Figure Eight
Form a large bight and tie a figure eight on the bight, splitting the result into two distinct loops. These loops must be equal in size and tensioned evenly. Dress the knot carefully to avoid internal crossing or jamming. -
Connect Each Loop to an Anchor
Use locking carabiners to clip each loop into a separate anchor point. These anchors may be bolts, trees, artificial placements, or structural elements depending on the environment. -
Set the Load Direction
Connect the load (e.g., mainline or directional) to the bottom of the figure eight knot or below the master point created by the knot’s stem. Ensure the load pulls in line with the anchors to maintain tension balance. -
Tension and Verify
Pre-tension the rope gently if needed and ensure both loops are engaged. Visually inspect the knot and both anchors. Confirm that both are holding weight equally or as close to equal as practical.
Why Use This System
-
Single-knot simplicity: The double loop figure eight is fast to tie, easy to inspect, and familiar to most rescue professionals.
-
No additional materials: Uses rope already in-hand—no slings, equalizers, or adjustables needed.
-
Load distribution: Provides passive distribution of force between two points with low extension risk.
-
Strong and reliable: Maintains a high percentage of rope strength when tied correctly and dressed cleanly.
Cautions and Considerations
-
Not dynamically equalizing: This is a load-sharing system, not a load-distributing one. If one anchor fails, there will be movement and possible extension.
-
Knot positioning matters: Poor dressing or misaligned loops can cause unbalanced loading.
-
Anchors must be solid: This system relies on both anchors being independently capable of holding full load.
-
Not adjustable under load: Once tensioned and loaded, it’s static. Any adjustments require de-tensioning.
Best Use Cases
-
Edge-based anchor systems in rope rescue
-
Directional anchor stabilization
-
Redundant main or belay line rigging
-
Backcountry environments with limited rigging hardware
Final Thought
The Load Distributive Anchor using a Fixed Rope and Double Loop Figure Eight combines the best of simplicity and performance. It’s a system built from skill, not hardware—a reliable, rigging-first method for teams that need strength, speed, and redundancy with minimal equipment.
When used with good judgment and solid anchor placement, this method remains a cornerstone of efficient, no-fail rope rescue practice.
Peace on your Days
Lance
