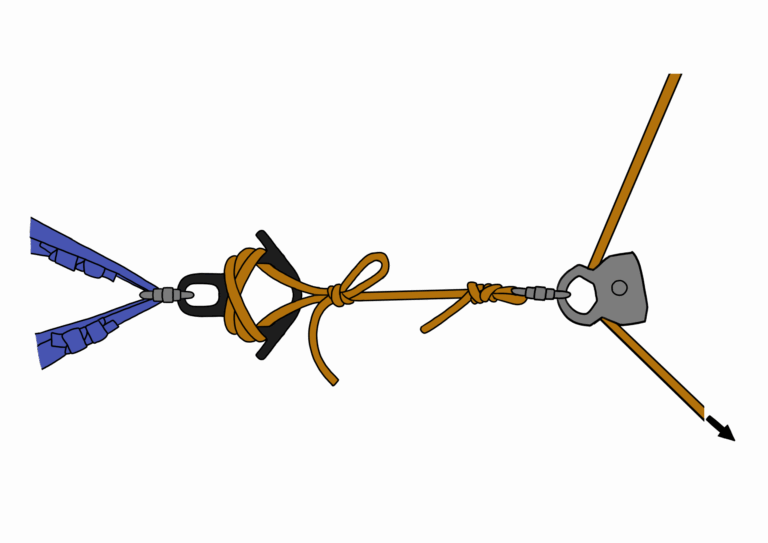

Change of Direction Anchor System

In rope rescue and rigging, a change of direction anchor system is used to redirect the path of a rope or load. These systems allow rescuers to safely shift the line around an edge, obstacle, or into a new angle—without sacrificing control or safety.

They’re not just helpful. In many cases, they’re essential. Whether guiding a rope over a cliff edge or around a structural corner, the change of direction system helps you manage the load without fighting terrain or compromising your setup.

Redirecting Loads Safely

The core function is redirection. A properly built system changes the rope’s direction without interrupting the load path or introducing unwanted friction. Whether you’re hauling, lowering, or stabilizing a system, direction changes need to be clean and deliberate.

• Redirects rope around corners, edges, or structures

• Controls angles for improved hauling or positioning

• Maintains smooth rope path and system alignment

Anchor Placement and Support

To redirect a rope safely, the system relies on strategic anchor placement. Each anchor supports the redirection point and must be able to handle angled forces.

• Anchors may include trees, rock features, beams, or bolt plates

• Placement is critical to prevent slippage or lateral pull

• Must be strong enough to handle redirected force vectors

Hardware That Enables Movement

Pulleys and low-friction devices are used to manage the rope path. These tools reduce wear and improve efficiency—especially under heavy loads or dynamic movement.

• Pulleys reduce friction and allow smoother transitions

• Specialized hardware can absorb angles or change rope direction precisely

• Devices must be compatible with the rope type and load class

Load Distribution and Control

Redirecting a rope introduces new force angles. That’s why load distribution is key. Poorly planned redirection points can overload anchors or stress rope components unevenly.

• Evaluate force vectors before committing to the layout

• Use proper angles to keep forces within safe limits

• Always test the direction change before applying full load

Safety Measures and Redundancy

Safety is critical—especially at edges or exposed zones. Any misalignment or failure at a redirection point can compromise the whole system.

• Use backups where needed

• Secure pulleys and connectors to prevent side-loading

• Avoid shock-loading by pre-tensioning and testing before use

Adaptable to Complex Environments

Change of direction systems are common in high-angle rescue, confined space entry, and industrial rigging. They help you stay flexible without re-rigging the whole system.

• Works well in terrain with obstacles or elevation shifts

• Ideal for managing rope over edges, down walls, or across platforms

• Can be temporary or permanent depending on the operation

Final Thought

The change of direction anchor system is a fundamental rigging technique. It’s not flashy, but it’s often the difference between a clean rescue path and a complicated workaround.

Redirect with purpose. Build with control. Every angle matters.

Peace on your Days

Lance
